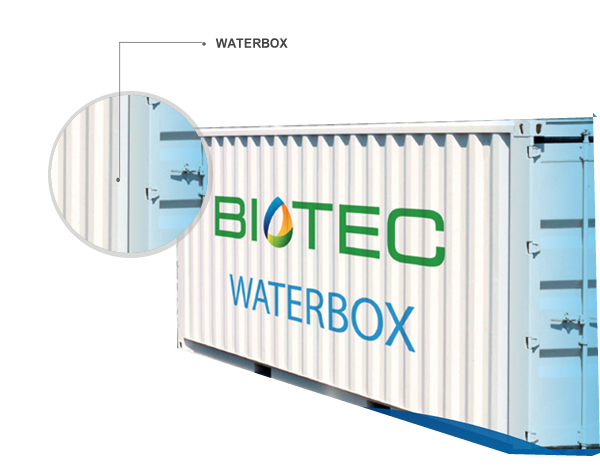

Waterbox
WATERBOX is a robust solution that has potable or industrial water production ranges between 500 and 2,000 m3 / day, mounted in a 40-foot container, which allows a quick installation of easy operation, offering a solution for the desalination of groundwater , with low consumption of energy and CHEMICAL products.Our reverse osmosis (RO) membrane systems are designed and manufactured so that their after-sales management can be carried out without inconvenience.BIOTEC designs systems according to customer needs, with cutting-edge technology adaptable to the level of requirements and sophistication demanded for each particular case.
Applications
- Well water purification
- Water purification in climatic emergencies
- Water treatment for beverages
- Agriculture and livestock
- Power generation
- Water reuse
- Fluorine and arsenic removal
- Industrial water treatment
- Water for the mining industry
- Effluent reuse
- Water treatment for irrigation
Our Competitive Advantages
- Process reliability
- Specialized 24/7 after-sales service
- Lower operating cost
- Longer useful life of the filter elements
- Preventive maintenance that does not damage the performance of the membranes
Special Applications
- Arsenic removal
- Nitrate removal
- Boron rejection> 95%
- Removal of bromides as a bromate precursor in bottled waters
- Recovery of RO concentrate with high content of TDS
- Reuse of effluents
- Recovery of water from CIP
Technical Features
- First line reverse osmosis membranes
- Double absolute filtration stage: - First stage 20 μm - Second stage 5 μm
- Automatic control by PLC
- Simple user interface: Display Touch Screen
- High pressure pipes in AISI 316
- High pressure pumps in AISI 316
- Antifouling and dispersant dosing
- In-line digital conductivity meter with temperature compensation
- Fast Flush rapid cleaning system
- Low and high pressure switch
- Individual check valves in permeate - prevents degradation in membranes
- Taking individual samples in permeate
Optional for Some Specific Processes
- Automatic feed pH adjustment system
- Low pressure pumping system
- Endress + Hauser instrumentation
- Automatic mixing system with raw water to increase production capacity
- Automatic chlorination system with proportional adjustment
- Remote Monitoring System
- Ultraviolet irradiation system for biofouling inhibition and bacteriological control
Operational Parameters
- It is designed to operate within a wide variation of brackish water parameters:
- Turbidity up to 3 NTU
- Total Dissolved Solids (TDS) up to 4,000 ppm
- Temperature between 10 ° C and 25 ° C The maximum production capacity will depend on the technical characteristics
of raw water. Additional pretreatment can be provided to treat water outside of this range
Clean In Place (CIP) unit
The incorporation of a fully integrated CIP unit represents a major technological upgrade, which simplifies cleaning operations,
reduces downtime and reduces total operating costs
Advantages
- Minimizes system downtime
- Allows cleaning of each arrangement independently
- Eliminates dependence on external cleaning systems
- Simple operation semi-automatic system
Rinsing with Permeate
Highly recommended practice to avoid premature deterioration of the membranes during periods of inactivity, especially in applications of
drinking or drinking water, cosmetic or pharmaceutical industry, where the addition of biocides in line is not allowed.
In addition
- Minimizes the corrosion of pipes in systems with high concentrations of chlorides in the feed (Pitting)
- Cleans the surface of the membranes
- Prevents bacterial growth leaving the habitat with a low content of nutrients
- Eliminates discards of demineralized water by increase conductivity at start-up
